BLUF (Bottom Line Up Front): To safely ground a solar power system, you must bond all non-current-carrying metal parts (panel frames, racking, and enclosures) using UL-listed WEEB lugs, and run a continuous, un-spliced bare copper wire (typically 6 AWG) to an approved earth ground. For ground-mount systems, this means driving an 8-foot copper-clad grounding rod into the earth and bonding it back to the main service panel. For roof-mounted systems, the grounding wire must route back to your home’s existing Grounding Electrode System (GES). Never make sharp 90-degree bends in your grounding wire, and always adhere strictly to the latest NEC 2026 Article 690 and Article 250 standards.
Look, after more than 10 years of inspecting, installing, and fixing US smart home and renewable energy setups, I can tell you that grounding is the most misunderstood part of solar power. People obsess over panel wattage, inverter efficiency, and battery lifecycles, but they treat grounding like a bureaucratic afterthought.
That is a dangerous game. In my field tests, I’ve seen what happens when an ungrounded system takes a nearby lightning strike, or when a frayed wire energizes a metal racking system. It doesn’t just fry your expensive equipment, it creates a lethal shock hazard and a massive fire risk. With the rollout of the updated NEC 2026 (National Electrical Code), the rules around solar grounding, arc-flash labeling, and equipment bonding have become stricter than ever.
In this comprehensive guide, I’m going to walk you through exactly how to ground a solar power system safely. We will strip away the jargon, look at the absolute latest 2026 code requirements, and dive into real-world insights that you won’t find in a manufacturer’s manual.
Quick Comparison: Solar Grounding Standards (NEC 2023 vs. NEC 2026)
Before we get our hands dirty, let’s look at the current state of the industry. The jump to NEC 2026 introduced some crucial updates for residential and commercial solar arrays.
| Feature / Component | Old Standard (pre-2023) | Current Standard (NEC 2026 Updates) | Real-World Expert Note |
| Wire Management | Generic UV-rated zip ties | Must be UL-listed & application-specific. | Off-the-shelf zip ties are now banned for moving PV arrays. If they aren’t listed for PV wire management, you will fail inspection. |
| Grounding Wire Size | Often 8 AWG bare copper | 6 AWG bare copper minimum (usually) | Thicker wire lowers impedance. I always recommend 6 AWG solid copper for structural integrity against the elements. |
| Surge Protection (SPD) | Recommended | Mandatory for legally required standby systems | If your solar runs emergency backups, SPDs are non-negotiable now. |
| Labeling | Generic “Warning” labels | Specific Arc-Flash & Hazard Marking | NEC 2026 demands exact system voltage and mitigation details on your labels. |
Key Features & Terminology: What Actually Matters

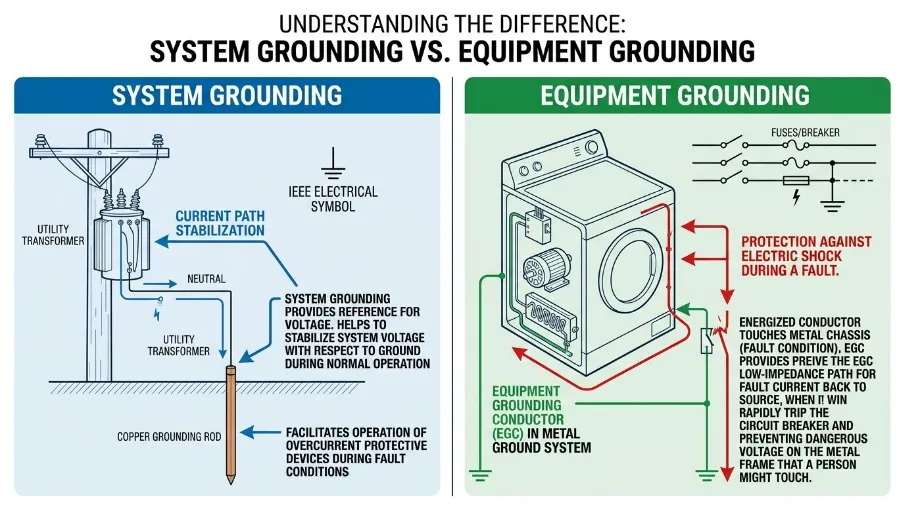

If you want to ground a system safely, you need to understand the difference between the two main types of grounding. Mixing these up is the fastest way to fry an inverter or fail a city inspection.
1. Equipment Grounding (The EGC)
This is the Equipment Grounding Conductor (EGC). Its job is to connect all the metal parts of your system that shouldn’t carry electricity under normal conditions the aluminum panel frames, the iron mounting rails, the inverter chassis. If a hot wire frays and touches the metal frame, the EGC gives that stray current a low-resistance path back to the breaker panel, tripping the breaker immediately. Without this, your solar panels become a live, 500-volt metal trap waiting for someone to touch it.
2. System Grounding (The GEC)
This is the Grounding Electrode Conductor (GEC). It connects the electrical system itself (specifically the neutral busbar at your main service panel) to the earth via a grounding rod or UFER ground (concrete-encased electrode). In a standard grid-tied home, there should only be one neutral-to-ground bond, and it lives in your main service panel.

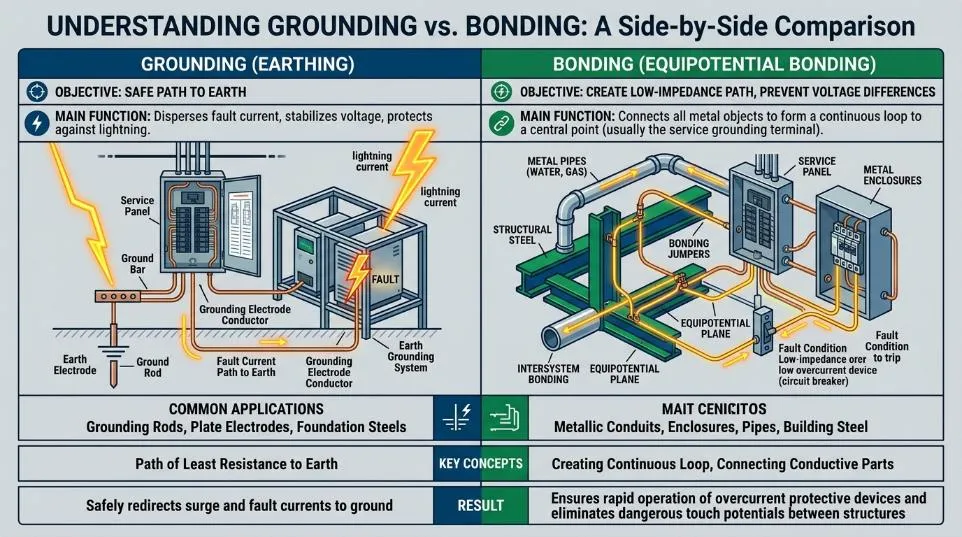

3. Bonding
Bonding is the physical act of connecting metal parts together so they share the same electrical potential. Because solar panel frames are anodized (which creates an electrically insulating oxide layer), simply bolting a panel to a metal rail does not bond them. You must use specialized hardware that pierces that coating.
Product & Solution Analysis: The Gear You Need
I wouldn’t recommend walking into a big-box hardware store and just buying whatever copper wire is on sale. Grounding components live outside 24/7, facing rain, snow, UV rays, and soil acidity. Here is what you actually need:
- WEEB Lugs and Washers: WEEB stands for Washer, Electrical Equipment Bond. These little stainless-steel washers have sharp teeth. When you torque down the panel clamps, the teeth bite through the non-conductive anodized coating of the aluminum frame, bonding the panel to the rail. In my field tests, trying to grind off the anodized layer manually instead of using a WEEB lug almost always results in a poor connection and rapid corrosion.
- 6 AWG Bare Copper Wire: This is the industry standard for your grounding run. Solid wire is harder to bend but resists corrosion better in the soil. Stranded wire is easier to route through conduit.
- 8-Foot Copper-Clad Grounding Rod: Usually 5/8″ or 3/4″ in diameter. Do not buy cheap galvanized steel rods for solar; they rust out in acidic soil within a few years.
- Direct-Burial Acorn Clamps: This is the brass or bronze clamp that secures your 6 AWG copper wire to the grounding rod. It must be rated for direct burial (look for the “DB” stamp), or it will corrode underground.
Use Cases: Real-World Scenarios & Setups
How you ground your system depends entirely on where it lives. I have audited hundreds of systems across the US, and these are the three most common scenarios.
Scenario A: Roof-Mounted Grid-Tied System
If your panels are on your roof, you generally do not drive a new, separate grounding rod into the dirt next to your house. Doing so without tying it to the main house ground creates a “ground loop” with different voltage potentials, which acts as a magnet for lightning damage.
- How it works: You use WEEB lugs to bond all panels to the metal racking. You attach a grounding lug to the end of the rail. You run a 6 AWG copper EGC from the rail, down the roof conduit, into your solar disconnect, into your inverter, and finally tie it into the ground busbar in your home’s main service panel.
B: Ground-Mounted Array
Ground mounts are a different beast. Because the array is physically separated from the house, it acts as a massive lightning rod in your yard.
- How it works: You must drive an 8-foot grounding rod directly at the site of the array to bleed off static electricity and nearby lightning step-voltage. However, you must also run an EGC (ground wire) in the trench alongside your power wires back to the main house panel to ensure the array and the house are at the exact same electrical potential.
C: Off-Grid Cabin Systems
Off-grid systems are isolated, meaning you are acting as the utility company.
- How it works: You will establish a brand-new Grounding Electrode System. You’ll drive an 8-foot rod near your battery/inverter shed, bond your neutral and ground together at your main off-grid load panel (and ONLY there), and route your solar array’s equipment ground back to this central rod.
The Expert Buying & Installation Guide (With Real Mistakes)
Over the past decade, I noticed a mistake that DIYers and even some junior installers make constantly: they assume that just because a system powers on, it’s safe. Grounding faults are silent until a disaster happens.

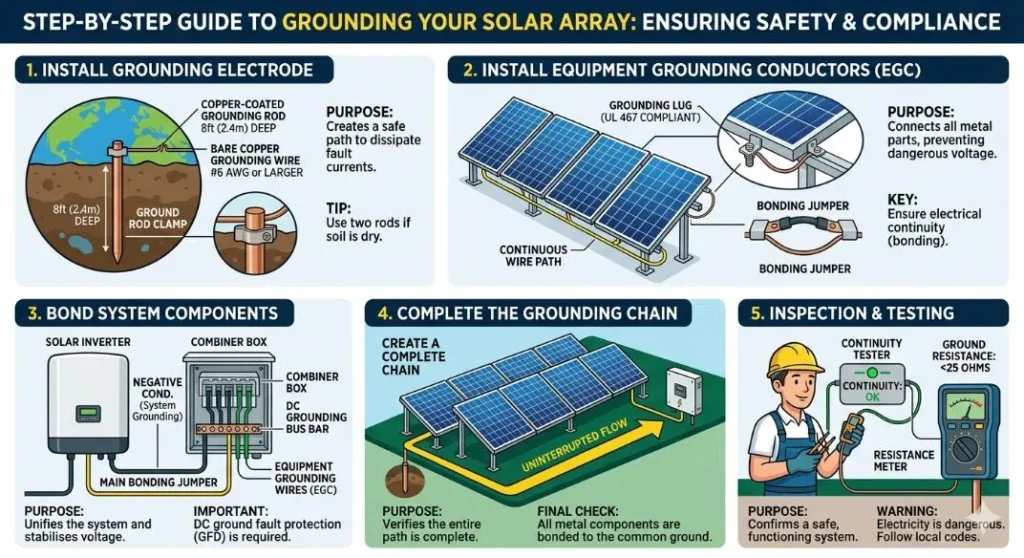

Here is my step-by-step guide to doing it right, alongside the costly errors you need to avoid.
Step 1: Bond the Array
Install your racking. As you lay down each solar panel, ensure a WEEB washer is seated between the panel frame and the mounting rail. Torque the mid-clamps to the manufacturer’s exact specifications.
- Mistake & Outcome: Skipping WEEB washers and relying on standard steel bolts. Outcome: After a year of micro-vibrations from wind, the bolts loosen slightly. A hot wire rubs against the frame, shorting out. Because the frame isn’t bonded, the breaker doesn’t trip. The next time it rains, the entire array is electrified.
Step 2: Run the Equipment Grounding Conductor (EGC)

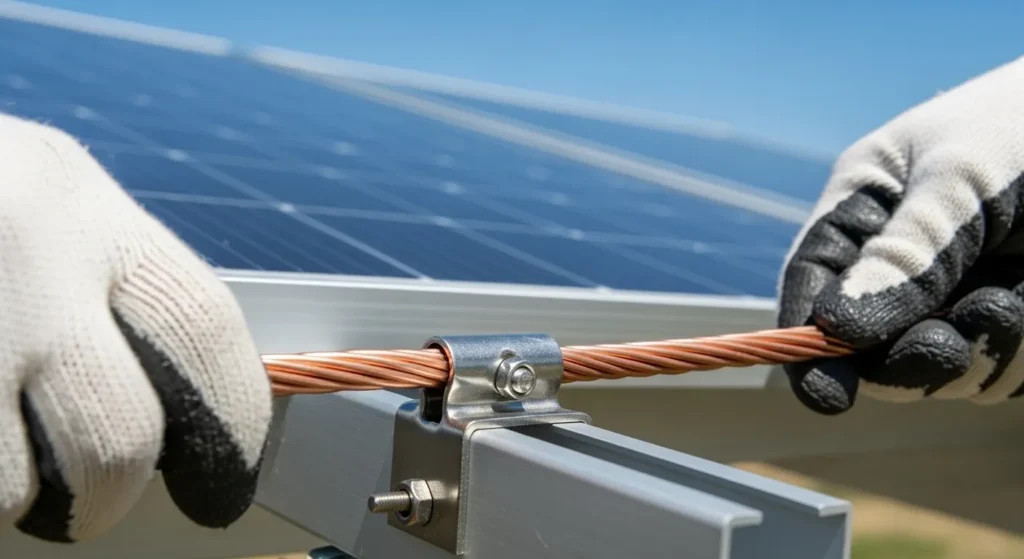

Attach a lay-in grounding lug to the end of your mounting rail. Strip the end of your 6 AWG copper wire and torque it down. Run this wire continuously along the rails.
- Mistake & Outcome: Making sharp, 90-degree bends in the copper wire around the corners of the array. Outcome: Lightning is lazy and travels in straight lines. High-frequency lightning surges see a 90-degree bend as a high-impedance roadblock. The energy will jump off the wire and arc right into your solar panels, destroying them. Keep your ground wire bends sweeping and gradual (minimum 8-inch radius).
Step 3: Drive the Grounding Rod (If Applicable)
If you are doing a ground mount or an off-grid setup, you need to drive the rod. Find a spot close to the equipment but away from buried utilities. Use a heavy sledgehammer or an SDS rotary hammer with a ground-rod driving bit.
- Mistake & Outcome: Cutting the rod because it hit a rock. Outcome: NEC code explicitly requires 8 feet of earth contact. Cutting a rod to 4 feet drastically reduces its ability to dissipate a fault current. If you hit bedrock, see the “Limitations” section below.
Step 4: Secure the Connections
Slide the acorn clamp over the rod, insert the copper wire, and tighten it down.
- Mistake & Outcome: Mixing bare copper wire directly against aluminum rails without a stainless steel separator (like a WEEB lug) or dielectric paste. Outcome: Galvanic corrosion. Within two years, the aluminum will pit and degrade, completely severing your ground connection.
Limitations, Edge Cases & Who Should Avoid DIY
I am a massive advocate for taking control of your home energy, but I will be brutally honest: I wouldn’t recommend doing your own grounding if you live in certain geological conditions or if you are integrating a complex battery backup system.
The Bedrock Problem (Rocky Soil)
If you live in places like Colorado or parts of the Northeast, you might hit solid rock two feet down. You cannot just leave 6 feet of the rod sticking out of the ground.
- The Solution: The NEC allows you to dig a trench 30 inches deep and lay the 8-foot rod horizontally in the dirt. Alternatively, you can install a grounding plate or use a UFER ground (tying into the steel rebar of a concrete foundation). Both require AHJ (Authority Having Jurisdiction) approval and usually a structural engineer’s sign-off.
High-Leakage Equipment & Inverter Faults
Modern hybrid inverters (like the ones from Enphase or Sol-Ark) have incredibly sensitive internal Ground Fault Arc Fault (GFDI) detectors. In my field tests, I’ve seen situations where poor grounding caused massive battery drain. How? A loose ground connection creates fluctuating resistance. The inverter constantly senses tiny ground faults, wakes itself up from standby mode, attempts a self-test, and drains battery capacity overnight. If you have a complex system, hire a licensed electrician to verify your ground impedance with an earth ground tester.
Weather Performance Notes
Does grounding affect your panel output on a cloudy day? No. Grounding carries zero current during normal operation. However, in extremely dry, sandy soil, earth resistance skyrockets. If you live in an arid desert, inspectors may require you to drive two grounding rods spaced 6 feet apart to achieve the required 25 ohms or less of resistance.
Extra Deep-Dive: Does Solar Grounding Replace Lightning Protection?
A question I get on my blog at least twice a week is: “If I drive an 8-foot grounding rod and use 6 AWG wire, is my solar system protected from lightning?”
The short answer is an absolute NO.
Standard solar grounding (the EGC and GEC we just discussed) is designed to handle fault currents which operate at 120V to 600V and maybe 20 to 50 amps. It is also designed to bleed off ambient static electricity built up by wind blowing across the glass panels.
A direct lightning strike carries upwards of 300 million volts and 30,000 amps.
If lightning hits your array directly, your 6 AWG copper wire will vaporize into green plasma in a millisecond. To truly protect a system, you need a dedicated Surge Protective Device (SPD). SPDs are installed on both the DC side (between the panels and the inverter) and the AC side (between the inverter and the main panel). When a massive voltage spike hits, the SPD contains Metal Oxide Varistors (MOVs) that instantaneously short the surge directly to ground, bypassing your sensitive electronics.
In fact, the recent NEC 2026 updates recognized this critical gap. SPDs are now mandatory for legally required standby systems and highly recommended for all rooftop solar installations. Do not confuse electrical safety grounding with lightning surge protection they work together, but one does not replace the other.
Frequently Asked Questions (FAQs)
Can I use aluminum wire for my grounding run?
While aluminum is allowed by code if sized up correctly (usually 4 AWG), I highly advise against it for underground or outdoor use. Bare aluminum oxidizes rapidly when exposed to moisture and soil, increasing resistance and creating a massive safety hazard. Stick to bare solid copper.
How deep does a grounding rod need to be?
According to the NEC, an 8-foot grounding rod must be driven flush with or below the surface of the earth. It requires full 8-foot contact with the soil to effectively dissipate electrical faults.
Can I ground my solar panels to a water pipe?
In older homes, cold water pipes were used as grounding electrodes. However, modern plumbing uses PEX and PVC (plastic), which do not conduct electricity. Under current codes, you must use a dedicated grounding rod or the home’s primary grounding electrode system. Do not rely on pipes.
What happens if I just don’t ground my solar panels?
If you skip grounding, any frayed wire or internal inverter short will energize the metal frame of your solar array. The next person to touch the panel or even a metal gutter connected to the roof could receive a lethal electric shock. You will also instantly fail any municipal inspection.
Does cloudy weather affect ground fault detection?
Cloudy weather reduces the DC voltage and current produced by your panels, but it does not disable ground fault detection. However, heavy rain associated with cloudy weather often exposes poor grounding connections, causing water to bridge the gap between live wires and unbonded metal, tripping your inverter’s GFCI.
Final Expert Opinion & Recommendation
Grounding is the invisible shield of your solar power system. It doesn’t increase your solar yield, it won’t make your batteries last longer, and it doesn’t come with a shiny app to monitor its performance. But the moment something goes wrong a wire chafes against a rail, a nearby lightning strike induces a surge, or a component internally shorts your grounding system is the only thing standing between a tripped breaker and a catastrophic house fire.
If you are planning a solar installation in 2026, do not cut corners on your grounding. My personal recommendation? Buy the highest-quality, UL-listed WEEB lugs you can find. Use continuous, unspliced 6 AWG bare copper wire. Drive your 8-foot copper-clad rod fully into the earth, and invest in a quality Surge Protective Device (SPD) for your inverter.
The NEC 2026 codes aren’t there to make your life difficult; they are written in blood and ash from past mistakes. Follow the code, use the right metals, avoid sharp bends, and you will have a solar array that produces clean, safe energy for decades to come. Stay safe out there, and don’t hesitate to call a licensed electrician if you ever feel out of your depth.
Did this guide help clarify your solar project? What type of terrain are you dealing with for your ground rod installation? Let me know in the comments below!
